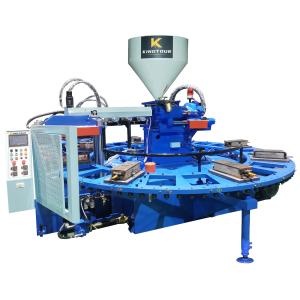

24 Stations One Color Shoe Making Machine with PVC Plastic material
Special Features of KT-618 Pro
Product:
Specialized in the production of plastic slipper, sandal, shoe ,flip flop and sole.
Applicable material:
Compact and expanded thermoplastic material,such as PVC PCU and TPR.
PLC + Touchscreen with 5-language interface,using like smartphone
4 Section precise temperature control
The ceramic band heater maintains stable temperature
Auto-alarm system for pressure/temperature anomalies
Multi-Station Rotary Table:
Simultaneous injection/cooling/ejection
30% faster mold change vs conventional
Air Blow System: Reduces product weight by 15-20%
| Specifications/Especificación | |||
| English | Espanol | Unit |
|
| Model | Modelo | Unidad | KT-618 Pro |
| Production | Producción | Pcs/h | 300-500 |
| Work station | Número de estaciones |
| 24 |
| Clamping force | Fuerza de Abrazadera | TON | 100 |
| Opening stroke | Carrera de apertura | MM | 220 |
| Mold dimension | Dimensión del molde | MM | 500*320*300 |
| Injector | Inyector | SET | 1 |
| Screw diameter | Diámetro de tornillo | MM | 70 |
| Max. Injection Volume | Volumen máximo de inyección | Cm3 | 800 |
| Screw L/D ratio | Relación de tornillo L/D | L/D | 21:1 |
| Screw rotation speed | Velocidad de rotación de Tornillo | R.P.M | 0-200 |
| Heating power of injector | Energía de la calefacción del inyector | KW | 7 |
| Motor | Motor | KW | 18.5 |
| Total power | Consumo eléctrico total | KW | 25.5 |
| Total power consumption with servo motor | Consumo total de energía con servo motor | KW | 12-15 |
| Temperature control | Control de la temperatura | Section | 4 |
| Machine dimension | Dimensión de máquina | L*W*H | 4990*3800*2350 |
| Machine weight | Peso de máquina | KGS | 5900 |
| *Note: Above data only for reference. | |||
Shoes made by our shoe making machine
