China 3 Station Rubber Sole Making Machine 61000W Rubber Sole Injection Machine KT-8583 wholesale

3 Station Rubber Sole Making Machine 61000W Rubber Sole Injection Machine KT-8583

Name: 3 Station Rubber Sole Making Machine 61000W Rubber Sole Injection Machine KT8583
Brand: KINGTOUR
Price: 49 USD

Ask Latest Price

Video Channel

Place of Origin :GUANGDONG,CHINA

Brand Name :KINGTOUR

MOQ :1 SET

Price :$49,900-52,900

Name :Rubber Sole Making Machine

video outgoing-inspection :Provided

machinery test report :Provided

core components :PLC, Bearing, Gearbox, Motor, Pump

production capacity :70-100 Pairs/hour

voltage :380V/220V 3 Phase

power(w) :61000

dimension(l*w*h) :3630*3432*2200mm

key selling points :Easy to Operate

Weight (KG) :12000

Function :To make Rubber sole

Raw material :Rubber

Required labor :1 worker only

Finished Products :Rubber sole

Certification :CE

Packaging Details :Professional safety export package

Delivery Time :5-35 Days

Payment Terms :TT,LC,DP

Supply Ability :100 Set Per Month

Contact Now

Add to Cart

View Product Description

Product Overview

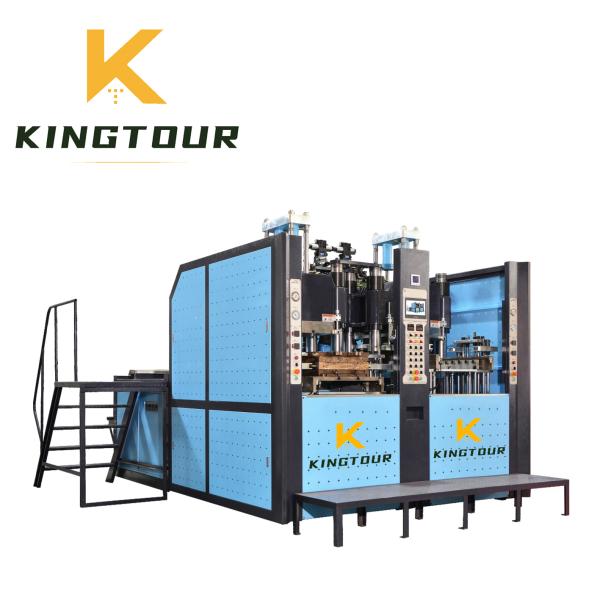

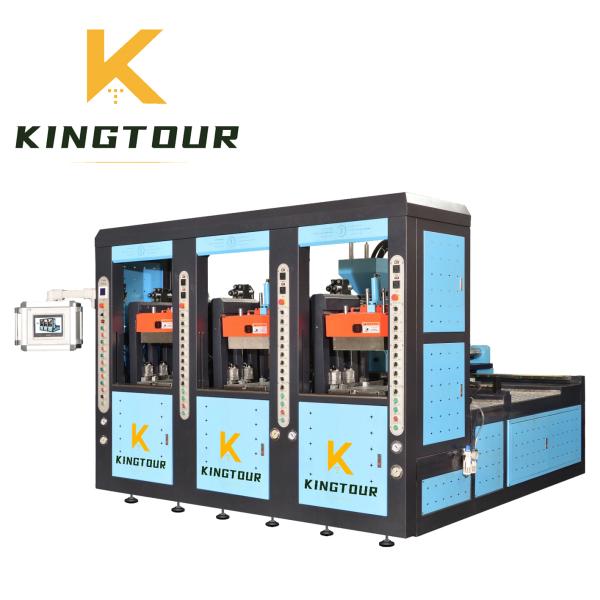

KT-8583 3 Station Rubber Sole Injection Molding Machine

Product: Specialized in the production of soles and soles with inserts.
Applicable material: Rubber.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 200 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.

FEATURES AT A GLANCE

3 Station Rubber Sole Making Machine 61000W Rubber Sole Injection Machine KT-8583

Model: KT-8583
Production: 70-100 Pairs/Hour
Work station: 3 Station
Clamping force: 200 Ton
Screw diameter: 60,65,70 mm
Max. Injection volume: 650-1000 cm3
Heating power: 18+6 kw
Motor: 22+15kw
Power consumption: 15-20 kw/h
Temperature control: 4 section
Machine dimension: 3630*3432*2200 mm
Machine weight: 12000 kgs
Loading into a 40 feet HQ
