China Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole wholesale

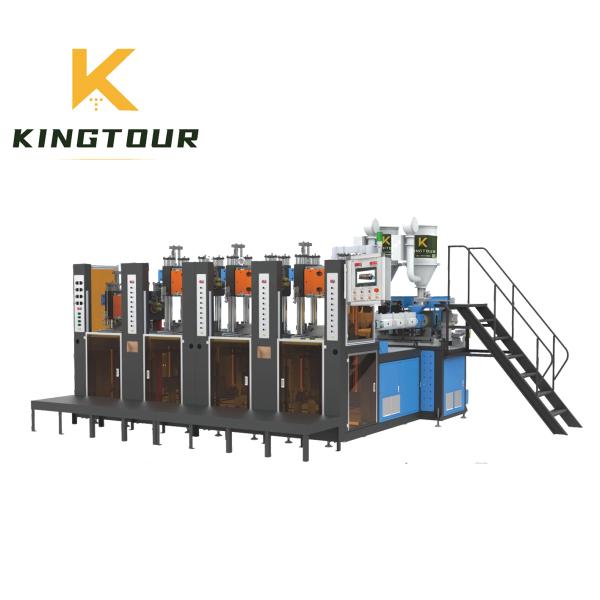

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole

Name: Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole
Brand: KINGTOUR
Price: 50 USD

Ask Latest Price

Video Channel

Place of Origin :GUANGDONG,CHINA

Brand Name :KINGTOUR

MOQ :1 SET

Price :$50,000-93,000

Product name :Static Injection Molding Machines

video outgoing-inspection :Provided

machinery test report :Provided

core components :PLC, Bearing, Gearbox, Motor, Pump

production capacity :200-280 Pairs/hour

voltage :380V/220V 3 Phase

power(w) :50500

dimension(l*w*h) :6650*3850*2850mm

warranty :1.5 Years

key selling points :Easy to Operate

Weight (KG) :18000

Function :To make PVC sole

Raw material :PVC

Required labor :2 workers

Finished Products :PVC sole

Certification :CE

Packaging Details :Professional safety export package

Delivery Time :5-35 Days

Payment Terms :TT,LC,DP

Supply Ability :100 Set Per Month

Contact Now

Add to Cart

View Product Description

Product Overview

KT-8686 6 Station Static injection molding machine for making PVC TPU TPR shoe sole

Product: Specialized in the production of soles and soles with inserts.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 220 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.Product: Specialized in the production of soles and soles with inserts.

FEATURES AT A GLANCE

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole

Specification of sole making machine
Model: KT-8683
Production: 200-400 Pcs/Hour
Work station: 3 Station
Clamping force: 80/100/120/150/220 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 6*2 kw
Motor: 15kw*2
Power consumption: 15-20 kw/h
Temperature control: 4 *2 section
Machine dimension: 4650*3800*2700 mm
Machine weight: 15000 kgs
Loading into a 40 feet HQ
